Polyethylene sewage retaining buoy pipe float LLDPE

Marine Buoyancy Solutions: Debris Barrier Buoys & Pipe Floats

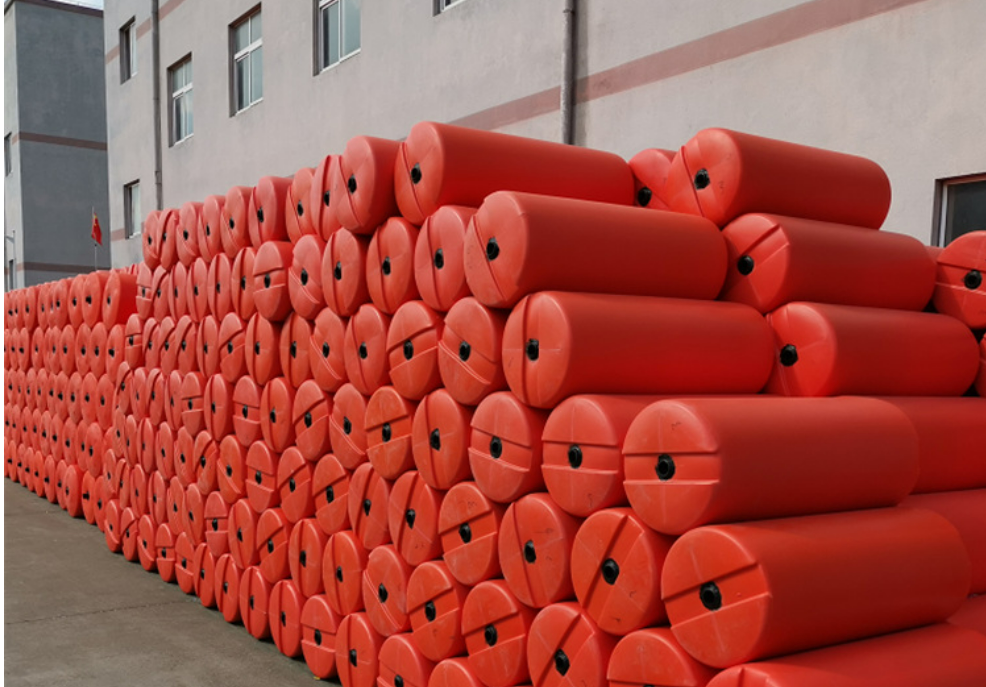

I. Debris Barrier Buoys

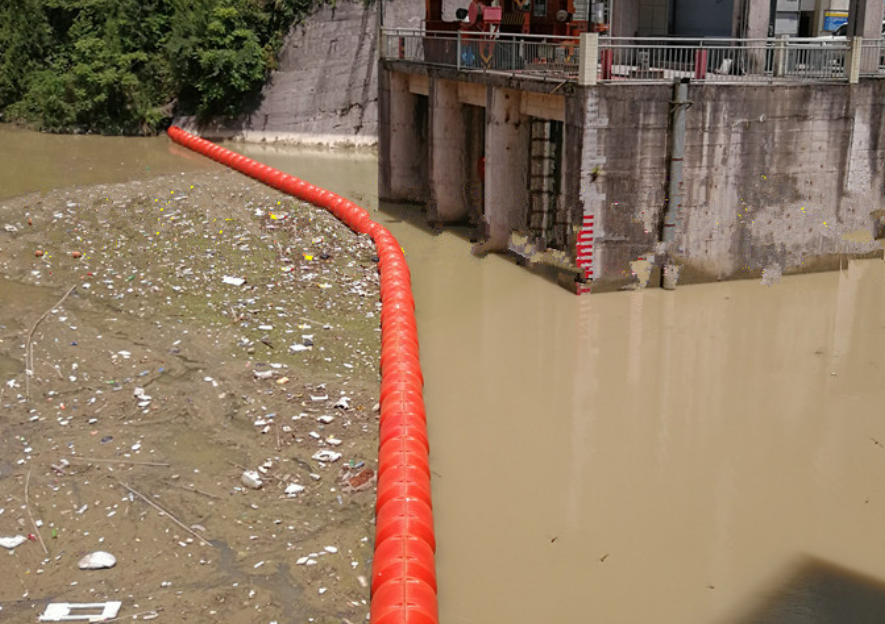

Designed to intercept floating debris and pollutants on water surfaces, these buoys form continuous barriers in rivers, lakes, reservoirs, and port areas.

Design & Specifications

• Shapes: Cylindrical, spherical, or rectangular box profiles; modular configurations available for custom barrier layouts.

• Dimensions:      – Cylindrical/spherical: Diameter 300–1500 mm; standard lengths 1 m, 1.5 m, 2 m (custom lengths supported)      – Box-type: Typical sizes include 1000×500×500 mm or 2000×1000×800 mm      – All dimensions tailored to hydraulic load and interception efficiency requirements

• Wall Thickness: 5–15 mm, engineered based on buoyancy demand, water depth, and mechanical stress.

• Buoyancy Capacity:      Net load-bearing capacity ranges from 500 kg to 800 kg (e.g., 800 mm diameter × 2 m length unit), accounting for self-weight and submerged volume.

• Connection System:      Pre-molded ear holes, buckles, or chain grooves enable lateral or longitudinal linking via stainless steel shackles, bolts, chains, or ropes—ideal for boom assembly.

• Color Options: UV-stable international orange, yellow, blue, or black; custom colors available upon request.

Typical Applications

• Floating debris and pollutant containment in freshwater bodies

• Protection of port entrances and navigation channels from large floating objects

• Visual navigation markers for vessel traffic management

II. Pipe Floats

Engineered to provide positive buoyancy and structural support for submerged pipelines in marine, riverine, or reservoir environments.

Design & Specifications

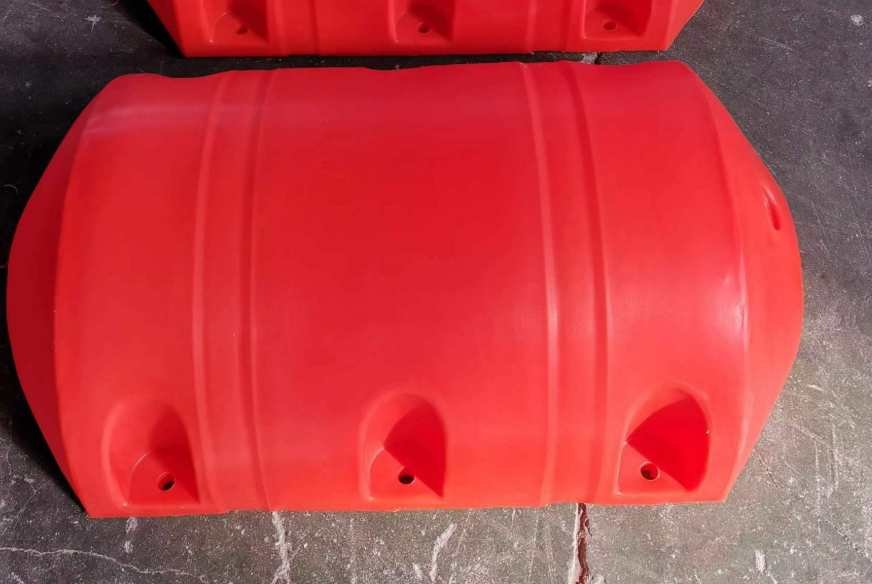

• Configuration: Two-half “clamshell” design with central pipe groove; alternative saddle or wrap-around styles available.

• Pipe Compatibility: Inner diameter precisely matched to pipe outer diameter (e.g., DN300, DN500, DN800).

• Dimensions:      – Standard lengths: 1 m, 1.5 m, 2 m      – Outer diameter sized to deliver required buoyancy while maintaining hydrodynamic stability

• Wall Thickness: 5–15 mm, selected based on pipeline weight, water depth, and dynamic loading.

• Buoyancy Performance:      Net uplift force calculated after deducting:      – Float self-weight      – Submerged portion of pipe weight      – Weight of clamps and accessories      Ensures pipeline remains positively buoyant at the design water level.

• Connection System:      – To pipe: Secured with stainless steel bolts through flanged halves      – Between floats: End-to-end bolting for continuous support      – Mooring: Integrated eyelets or rings for anchoring to seabed or support structures

• Color Options: International orange, yellow, blue, or black (UV-resistant pigments).

Typical Applications

• Support for outfall, intake, and dredging pipelines

• Maintenance of pipeline alignment and buoyancy in tidal or deep-water installations
