Rotational molding products

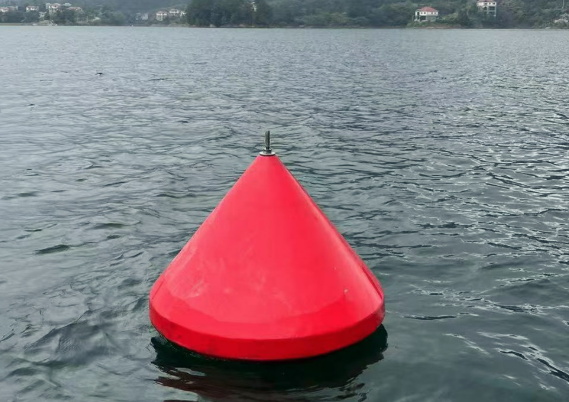

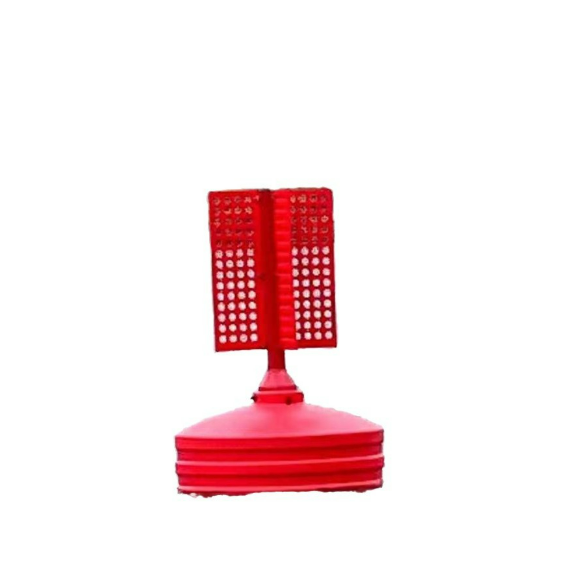

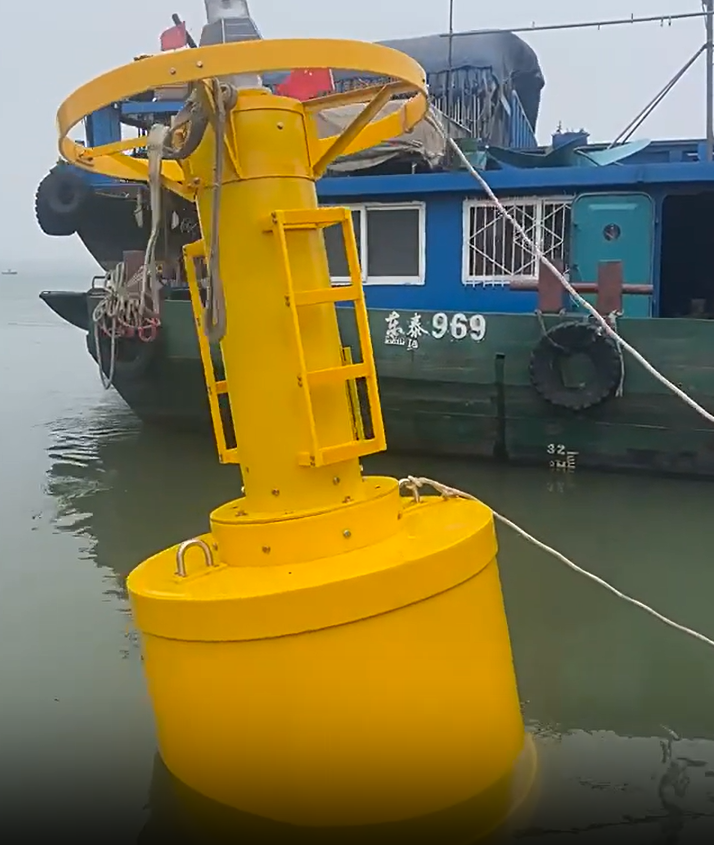

Ultra-high molecular weight polyethylene navigation buoy
Request InformationProduct Details
Product Parameters
| Model | Float diameter (mm) | Marked Water Depth (m) | Freeboard (mm) | Focal Plane Height (mm) | Net weight(kg) | Height (mm) | Reserve Buoyancy (kg) |
|---|---|---|---|---|---|---|---|
| UNB800 | 800 | 1.5-10 | 450 | 1580 | 195 | 2900 | 230 |
| UNB1200 | 1200 | 2-20 | 510 | 2040 | 550 | 3380 | 570 |
| UNB1500 | 1500 | 3-35 | 610 | 2740 | 760 | 4280 | 974 |
| UNB1800 | 1800 | 5-70 | 700 | 3031 | 1748 | 5034 | 1500 |
| UNB2100 | 2100 | 10-80 | 800 | 3518 | 1900 | 5757 | 2450 |
| UNB2400 | 2400 | 10-90 | 960 | 4527 | 2881 | 6930 | 3950 |
| UNB2600 | 2600 | 10-100 | 1000 | 4830 | 3100 | 7000 | 4550 |
| UNB3050 | 3050 | 20-120 | 1114 | 5164 | 3490 | 7610 | 7646 |
| UNB3500 | 3500 | 20-150 | 1240 | 6090 | 3863 | 8520 | 11380 |
