HDPE
- HDPE sheets, rods, and profiled components excel in lightweight design, corrosion resistance, ease of processing, and cost efficiency. They outperform metals in maintenance-free longevity and surpass conventional plastics in stiffness and environmental stress crack resistance (ESCR), making them ideal for structural applications in chemical, construction, and mechanical industries.

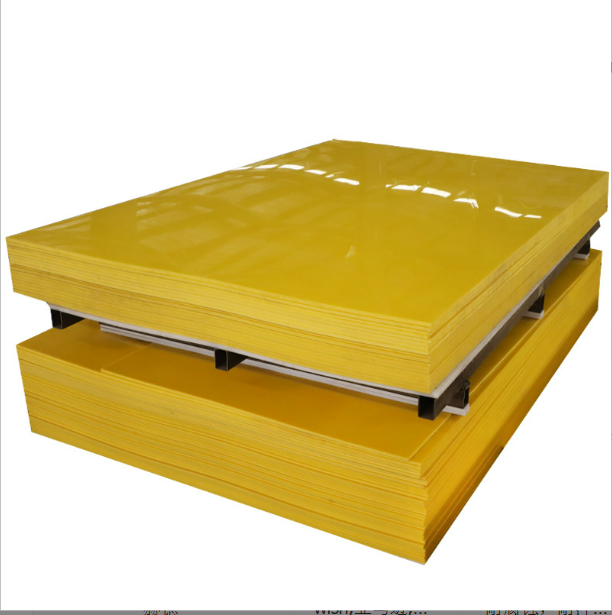

HDPE SHEET
Request InformationProduct Details
HDPE Sheet Specifications Summary
I. Basic Size Specifications
Thickness
Range: 5mm, 8mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm, 100mm, 150mm, 200mm, up to 300mm.
Tolerance: Complies with standards (e.g., DIN 16901) or custom requirements.
Width
Standard: 1000mm, 1200mm, 1500mm, 2000mm.
Custom: Supported per customer needs.
Length
Standard: 2000mm, 3000mm, 4000mm, 5000mm, 6000mm, or rolls (for thinner gauges).
Custom: Available.
Form
Primary: Sheet/plate.
Alternative: Rolls (for thinner gauges).
Custom Processing
Cutting, drilling, slotting, bending, welding per customer drawings.
II. Basic Material Types
| TYPE | PROPERTIES | APPLICATIONS |
|---|---|---|
| Homopolymer | Most economical; standard HDPE properties. | General-purpose use. |
| Copolymer | Higher toughness, better stress crack resistance, improved low-temperature impact; slightly lower density/rigidity. | Demanding environments (e.g., chemical exposure, cold temps). |
III. Modified/Additive Types
| ADDITIVE | FUNCTION | DETAILS |
|---|---|---|
| UV Stabilizer | Prevents degradation from sunlight. | Carbon black or high-efficiency absorbers. |
| Antistatic Agent | Reduces surface resistance. | Internal additive or surface coating. |
| Color Masterbatch | Provides color options. | Beyond natural white resin. |
| Reinforcing Fillers | Enhances wear resistance/load capacity. | Glass fiber or UHMWPE blends. |
| Lubricants | Lowers friction; improves self-lubrication. | — |
| Flame Retardants | Imparts fire resistance. | — |
IV. Surface Finish/Texture
| FINISH | PROPERTIES | APPLICATIONS |
|---|---|---|
| Smooth/Glossy | Low friction; easy to clean. | Standard uses; hygiene-critical areas. |
| Matte | Reduces glare. | Aesthetic/safety applications. |

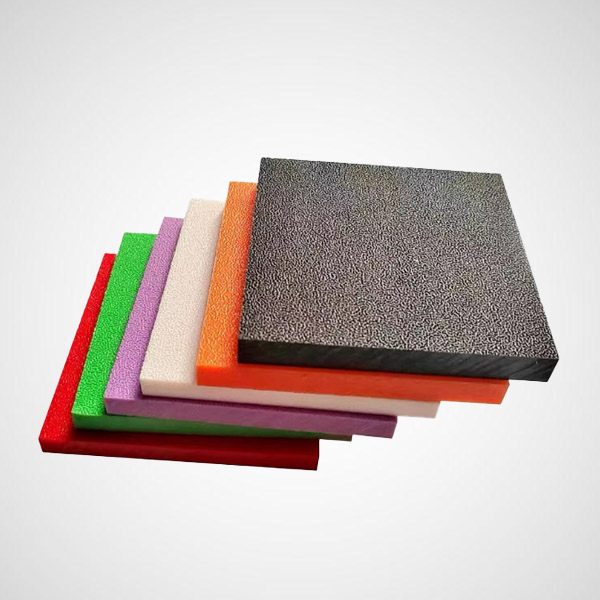

| Textured/Embossed | Improves grip; decorative. | Diamond grid, lines, leather patterns (e.g., flooring, ramps). |
| Mirror Polish | Ultra-low friction; high cleanliness; mirror-like finish. | Precision/cleanroom applications (high cost). |
