PE ANCHORING PLATES

PE Anchoring Plates

PE anchoring plates revolutionize traditional engineering through advanced polymer science—delivering ultra-durability, minimal maintenance, and full environmental compliance. This innovation reduces lifecycle costs by 30–50% compared to conventional metallic or concrete solutions, setting a new benchmark for sustainable infrastructure.

Core Performance Advantages

• Extreme Environmental Corrosion Resistance

• Chemical Stability: Resists aggressive acidic and alkaline environments (pH 1–14) with a corrosion rate of <0.01 mm/year—over 100× lower than metals (~1 mm/year).

• Saltwater/Seawater Resistance: Ideal for marine applications; eliminates electrochemical corrosion and offers a service life more than twice that of stainless steel.

• Long-Term Anti-Aging Performance

• UV Resistance: Formulated with 2.5–3% UV stabilizers, retaining >85% of mechanical properties after 50 years of outdoor exposure (per ASTM D1435).

• Temperature Adaptability: Maintains structural integrity from −50°C to 80°C, suitable for polar, desert, and other extreme climates.

• Exceptional Mechanical Properties

• High Ductility: Elongation at break ≥500% (GB/T 1040), capable of absorbing 3–5% strain from seismic activity or ground subsidence without failure.

• Fatigue Resistance: Exhibits no plastic deformation under cyclic loading; dynamic flexural strength ≥25 MPa (ASTM D790).

• Lightweight Design & Installation Efficiency

• Weight Advantage: Density of 0.94–0.96 g/cm³—60% lighter than metals—significantly reducing transport and handling costs.

• Modular Construction: Compatible with thermal fusion welding (joint strength ≥90% of base material) and mechanical anchoring systems, improving installation speed by up to 40%.

• Lifecycle Cost Efficiency & Sustainability

• Low Maintenance: Requires no anti-corrosion treatments; projected 50-year maintenance costs are just 1/5 of those for metallic alternatives.

• Low-Carbon Footprint: Embodied carbon of only 15 kg CO₂/m²—versus 80 kg for concrete and 50 kg for steel—fully aligned with ESG and green infrastructure standards.

• Broad Engineering Compatibility

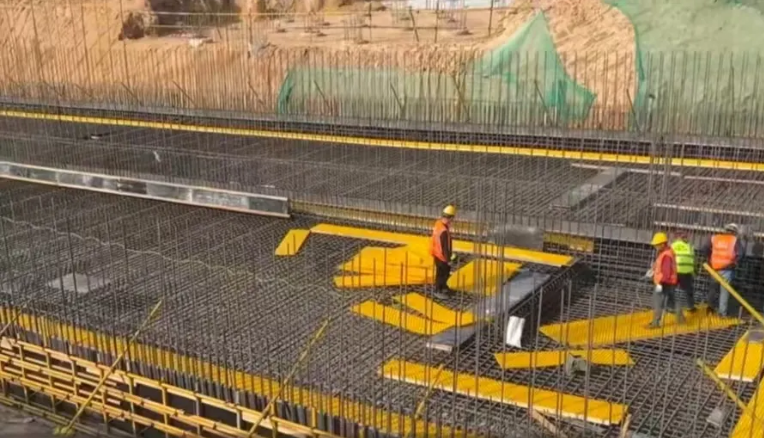

• Multi-Scenario Applications: Proven in landfill liners (leachate containment), hydraulic structures (dam impermeability), utility tunnels (moisture-proof anchoring), and renewable energy projects (solar/wind foundation systems).

• Adaptability to Complex Terrain: Flexible structure accommodates uneven settlement, minimizing rework in geotechnically challenging sites.

• Customization Options

• Available in custom sizes, colors, and configurations to meet project-specific requirements.

• Standard thickness: ≥8 mm (adjustable based on load and environmental demands).
